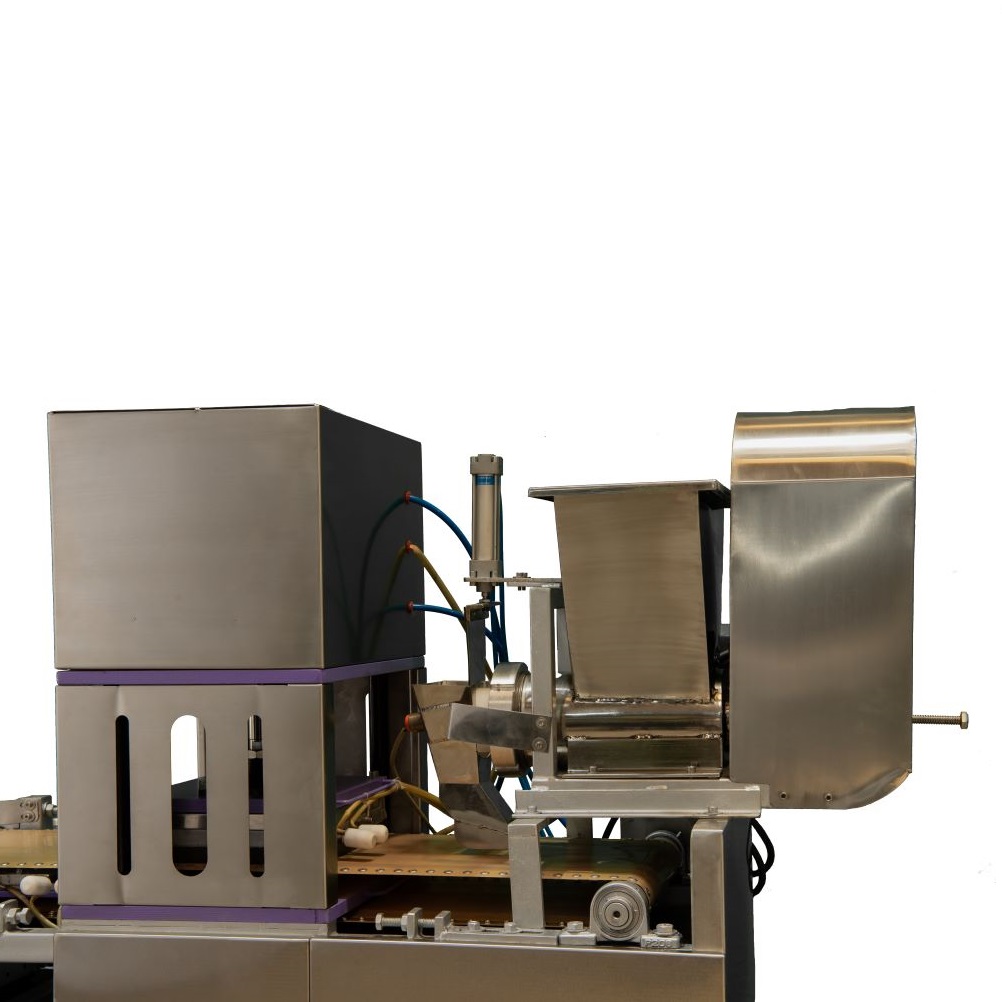

Ball Cutting Process

• Screw type ball cutter included for auto feeding ball to pressing machine.
• Dough filling doing continuously and filling capacity (3 to 5kg).
• Dough ball cut the even size and adjustable ball size (20g to 60g).
• Sensor are used cutting and pressing.

Ball Pressing Process

• Pressing section used as pneumatic system.
• Dough thickness also adjust
• Teflon conveyor used for moving chapatti’s to cooking conveyor
• Heaters provided for pressing plate

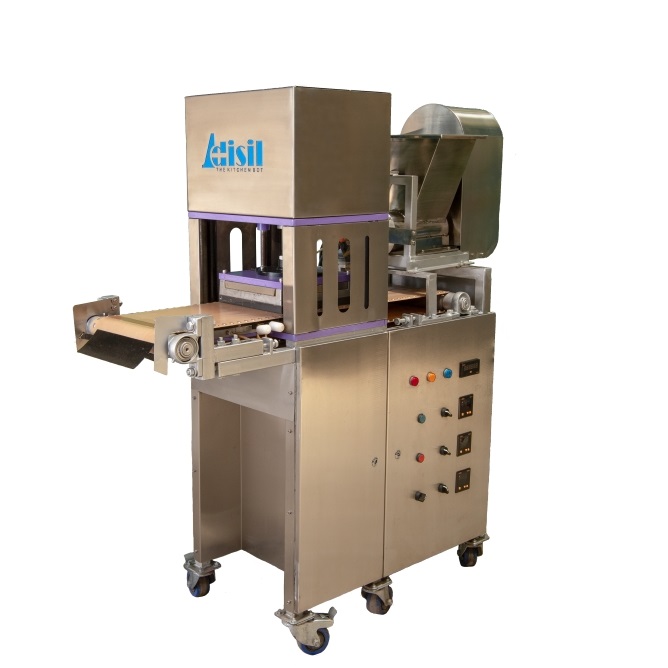

Technical Specification

• Model no ASCS-FSM01
• Material: The outer covering is fully made out of food graded stainless steel sheet Heavy mild steel
• Main frame: Heavy mild steel
• Operational Mode: Electrical and pneumatic
• Power source: 3 phase (415v)
• Power: 11kw
• Capacity: 1000-1200/hr
• Ball size: Adjust 20 to 60 grams
• Chapatti dia: 5" to 9"
• Thickness of chapatti: Adjustable up to 1 mm to 6mm thickness
• Dimensions: 1675 mm x 865 mm x 1675mm
• Weight: 335kg
• Required Compressor: 5hp / 3phase
• Required Capacity: 300 Ltr tank
